Standard version
We will talk about standard version and discuss the changes between this and other version.

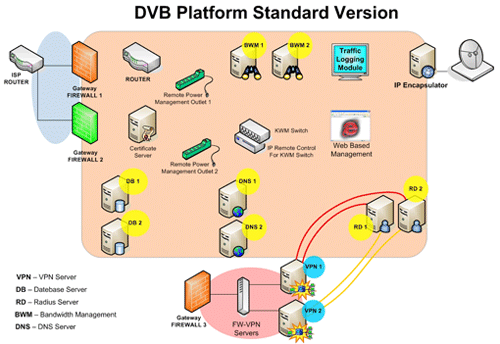

Standard version includes:
- 3 x firewalls
- 2 x bandwidth management
- 1 x router
- 1 x traffic logging module
- 2 x radius servers
- 2 x dns servers
- 2 x database servers
- 1 x certificate server for L2TP VPN accounts
- 2 x vpn servers clustered
- 1 x encapsulator
- 2 x remote power management outlets with 8 ports
- 1 x KWM switch with 8 ports
- 1 x IP Remote control for KWM switch
- 1024 IP address
- Ready to coordinate traffic to multiple miniplatform
- Ready to coordinate traffic to multiple encapsulators
As we can easily notice all dynamic modules are doubled to ensure emergency solution in case of a failure. Some of the modules was doubled because it a requirement of that specific application running there.
Standard version can handle up till 8000 End Users accounts, 50 000 simultaneous sessions and 45 mbps capacity.
|
|
